ORION 7C
Commercial EV charger
Single Phase AC public charging station.
Power: 3kW
Charge:
Installation:
Protection: ΙΡ55, IK10
User authentication:

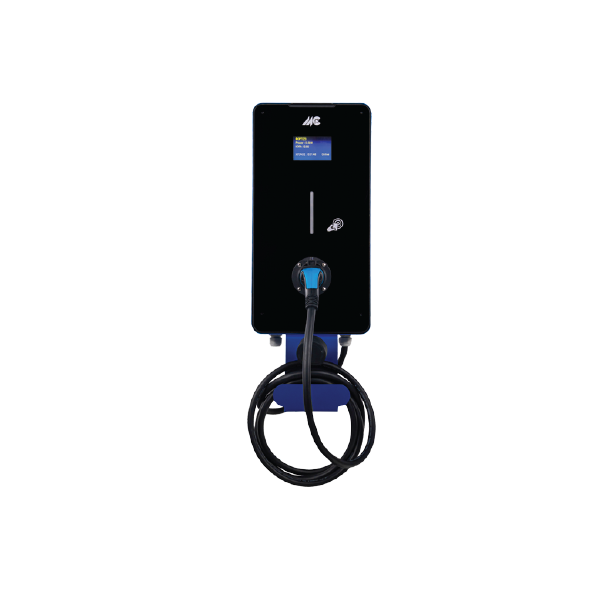

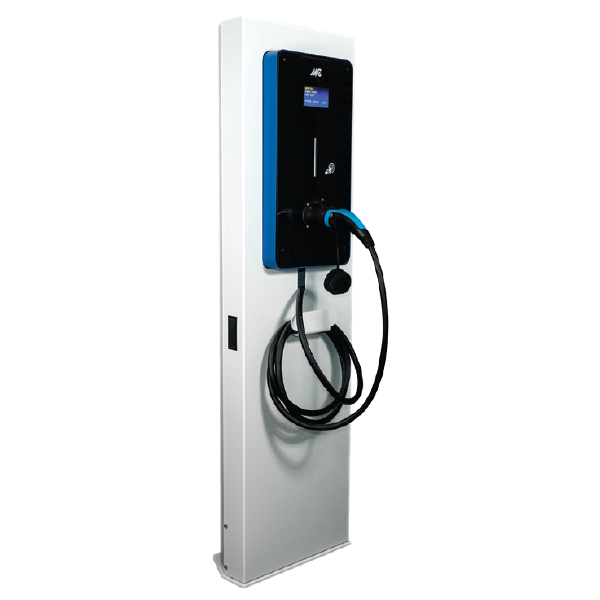

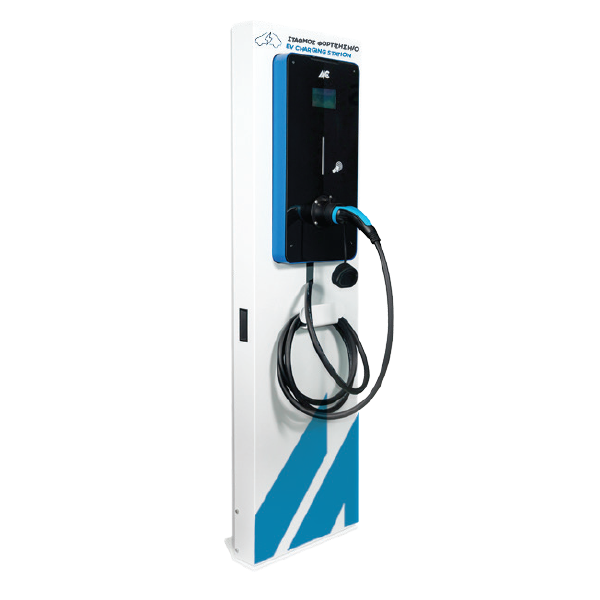

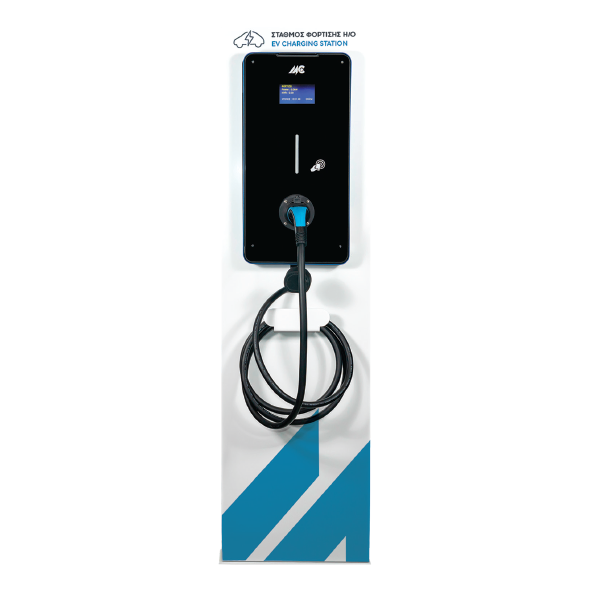

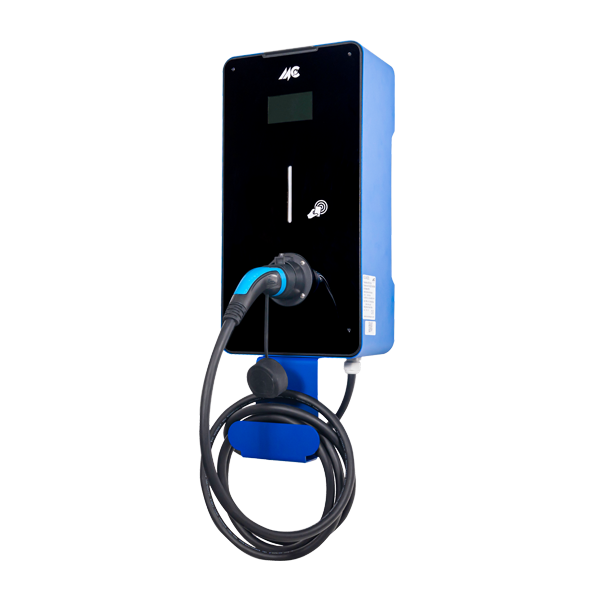

ORION 7CG
With 5m Mode 3 tethered cable Type 2
Built in 5m length, Mode 3, tethered Cable with Type 2 outlet for easy and fast connection with the Electric Vehicle.

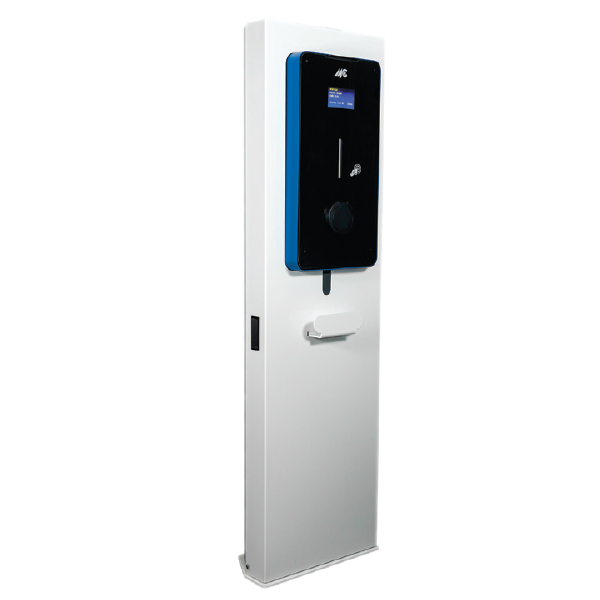

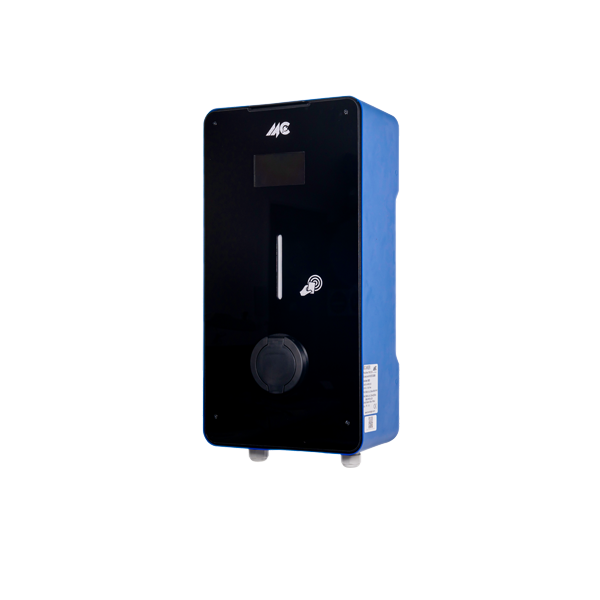

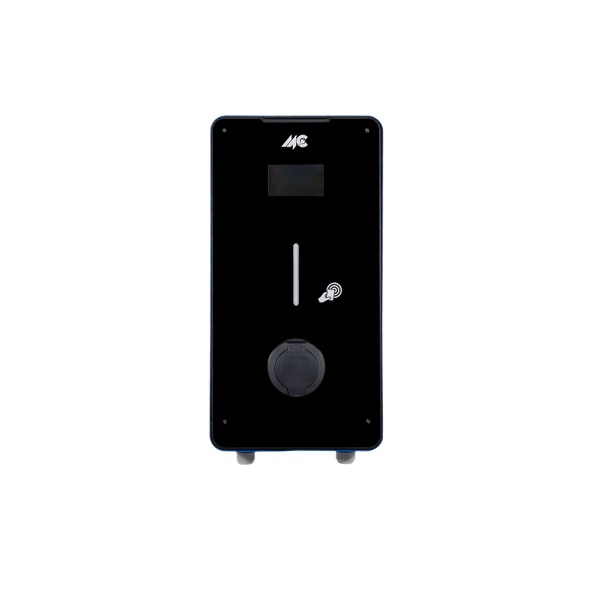

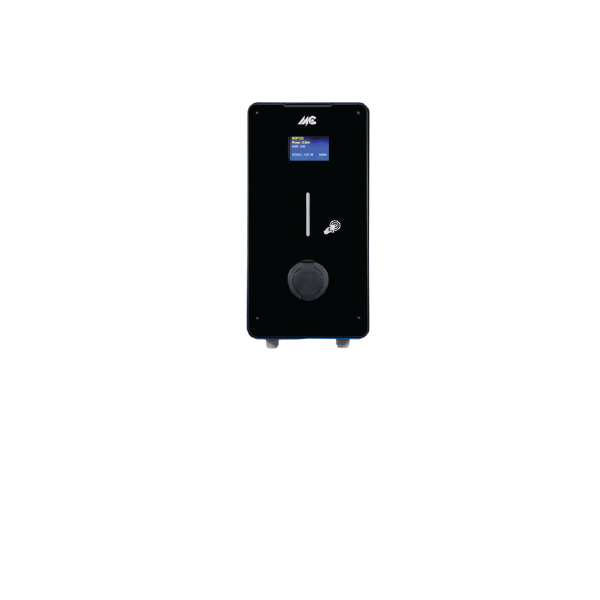

ORION 7CS
With Type 2 Socket Outlet.
Type 2 socket outlet with protective cap.
Tec Specs
Downloads
Tec Specs
| AC Input Characteristics | AC Input Voltage | 230VAC |
|
AC Output Characteristics
|
Input Type | 1P + N + PE |
| AC Input Current | 32Α | |
| Frequency | 50/60Ηz | |
| AC Output Voltage | 230VAC | |
|
Operating Conditions
|
Power | 7 kW max |
| AC Output Current | 32 A | |
| Operating Temperature | -25 °C – 50°C | |
| Storage Temperature | -30°C – 70°C | |
| Humidity | 5% – 95% RH (without condensation) | |
| Installation Altitude | Up to 2000m | |
|
Construction
|
Enclosure | Galvanized Steel, Polycarbonate (capability for anti-graffiti coating) |
| IP rating | ΙΡ55 | |
| Mechanical Impact ΙΚ | ΙΚ10 | |
| Display | LCD 4,3” | |
| Outputs | Τype 2 socket-outlet or Mode 3 tethered cable with Type 2 outlet (5m) | |
| Dimensions | 300x575x165mm (width x height x depth) | |
| Dimensions on base | Ground:440x1534x165mm, Wall:300x575x165mm | |
|
Weight
|
Wall base: With tethered cable 16,6kg , With socket outlet 14,9kg | |
| Ground Base: With tethered cable 58,3kg , With socket outlet 56,7kg | ||
|
Electronic Parts
|
Protective Devices
|
Overvoltage (OVP) & Undervoltage (UVP) Protection |
| Ground Loss Detection | ||
| Overtemperature Protection (OΤP) | ||
| Capability to add RCD (Residual Current Protection) with AC leakage detection 30mA and DC smooth current detection 6mA and circuit breaker MCCB Type C* | ||
| Capability to add Surge Protection SPD Type 2* | ||
| Communication Protocol | S2W & OCPP 1.6 JSON | |
| Language Menu | Greek, English ** | |
| User Identification | RFID | |
| Connectivity | Ethernet or WiFi or GSM | |
| Charging | Time | 6-7 hours |
|
Installation
|
Circuit Breaker Protection | Grid MCCB 40Α |
| Level Of Grid Power Supply | Νο 5 – Maximum Agreed Power 12kVA from Network Operator *** | |
| ATEX zones | Installation outside ATEX zones | |
| Grid Substation | Not Applicable | |
| Cable Cross Section |
3x6mm2(cable length up to 25m), 3x10mm2 (cable length up to 50m), 3x16mm2 (cable length up >50m)
|
|
| Certifications | Regulations | IEC EN 61851-1:2019, IEC EN 61851-1:2017, IEC 61851-21-2:2018, EN 62196-1:2014, EN 62196-2:2016, CE |
| Accredited Notification Body | DEKRA | |
| Warranty | 2 years |
