Electric Vehicle Charger ORION 22C
Commercial EV charger
The three-phase public electric vehicle charger with AC output is ideal for professional spaces and public charging stations. It offers fast and efficient charging for all EV models, with reliable performance and safety.
Power: 22kW
Charge:
Installation:
Protection: ΙΡ55, IK10
User authentication:

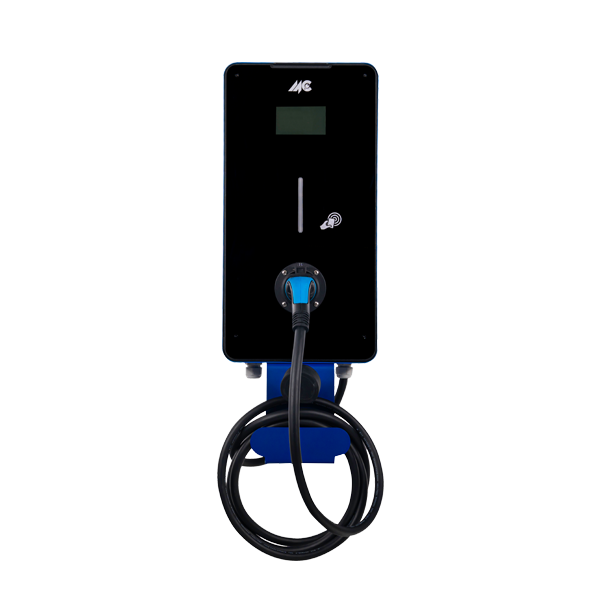

ORION 22CG
With 5m Mode 3 tethered cable Type 2
Built in 5m length, Mode 3, tethered Cable with Type 2 outlet for easy and fast connection with the Electric Vehicle
ORION 22CS
With Type 2 Socket Outlet.
Type 2 socket outlet with protective cap.
Tec Specs
Downloads
Tec Specs
| AC Input Characteristics | AC Input Voltage | 400VAC |
|
AC Output Characteristics
|
Input Type | 3P + N + PE |
| AC Input Current | 32Α/phase | |
| Frequency | 50/60Ηz | |
| AC Output Voltage | 400VAC | |
|
Operating Conditions
|
Power | 22 kW max |
| AC Output Current | 32Α/phase | |
| Operating Temperature | -25 °C – 50°C | |
| Storage Temperature | -30°C – 70°C | |
| Humidity | 5% – 95% RH (without condensation) | |
| Installation Altitude | Up to 2000m | |
|
Construction
|
Enclosure | Galvanized Steel, Polycarbonate (capability for anti-graffiti coating) |
| IP rating | ΙΡ55 | |
| Mechanical Impact ΙΚ | ΙΚ10 | |
| Display | LCD 4,3” | |
| Outputs | Τype 2 socket-outlet or Mode 3 tethered cable with Type 2 outlet (5m) | |
| Dimensions | 300x575x165mm (width x height x depth) | |
| Dimensions on base | Ground:440x1534x165mm, Wall:300x575x165mm | |
|
Weight
|
Wall base: With tethered cable 18,9kg , With socket outlet 17,2kg | |
| Ground Base: With tethered cable 60,6kg , With socket outlet 58,9kg | ||
| Energy Meter | MID certified 3-phase energy meter* | |
|
Electronic Parts
|
Protective Devices
|
Overvoltage (OVP) & Undervoltage (UVP) Protection |
| Ground Loss Detection | ||
| Overtemperature Protection (OΤP) | ||
| RCD (Residual Current Protection) with AC leakage detection 30mA and DC smooth current detection 6mA and circuit breaker MCCB Type C* | ||
| Surge Protection SPD Type 2* | ||
| Communication Protocol | S2W & OCPP 1.6 JSON | |
| Language Menu | Greek, English ** | |
| User Identification | RFID | |
| Connectivity | Ethernet or WiFi or GSM | |
| Charging | Time | 1,5-2 hours |
|
Installation
|
Circuit Breaker Protection | Grid MCCB 40Α |
| Level Of Grid Power Supply | Νο 3 – Maximum Agreed Power 35kVA 3-phase from Network Operator *** | |
| ATEX zones | Installation outside ATEX zones | |
| Grid Substation | Not Applicable | |
| Cable Cross Section | 5x10mm2(cable length up to 100m), 5x16mm2 (cable length up to 150m) | |
| Certifications | Regulations | IEC EN 61851-1:2019, IEC EN 61851-1:2017, IEC 61851-21-2:2018, EN 62196-1:2014, EN 62196-2:2016, CE |
| Accredited Notification Body | DEKRA | |
| Warranty | 2 years |
